Frigidaire Electric Range FEF352BADA Timer Repair

What is the timer/clock part number for the Frigidaire FEF352BADA Electric Range?

Timer part number 5303935108 for Frigidaire FEF352BADA

The FEF352BADA Electric Range uses timer part number 5303935108.

Do you have a failed Frigidaire FEF352BADA control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Frigidaire FEF352BADA timer.

FEF352BADA are also sometimes referred to using these Alternative Names/Model numbers

Electrolux FEF352BADA Electric Range

FEF352BADA Schematic and Wiring Diagrams

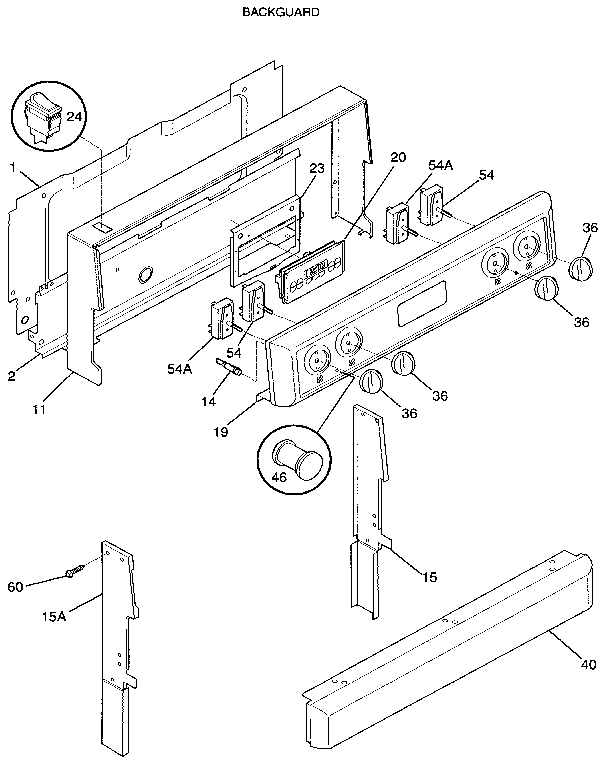

Backguard Parts diagram
FEF352BADA Electric Range Backguard Parts diagram

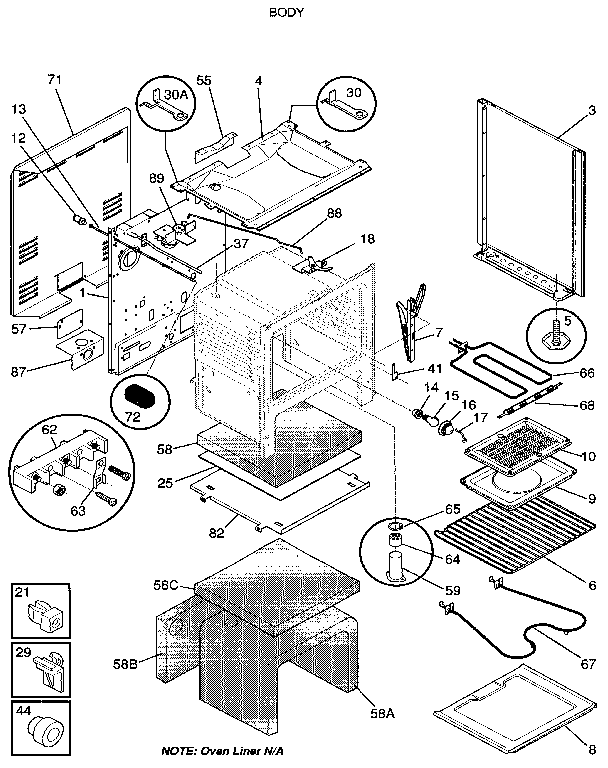

Body Parts diagram
FEF352BADA Electric Range Body Parts diagram

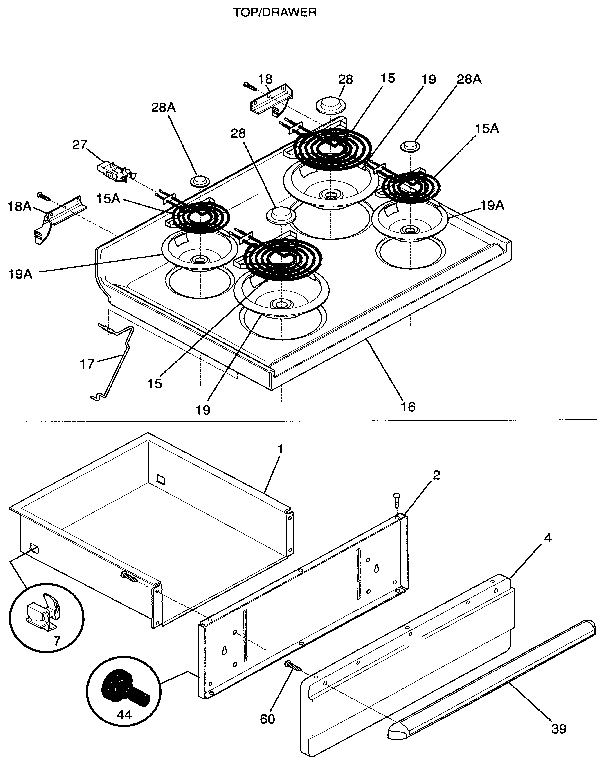

Top/drawer Parts diagram
FEF352BADA Electric Range Top/drawer Parts diagram

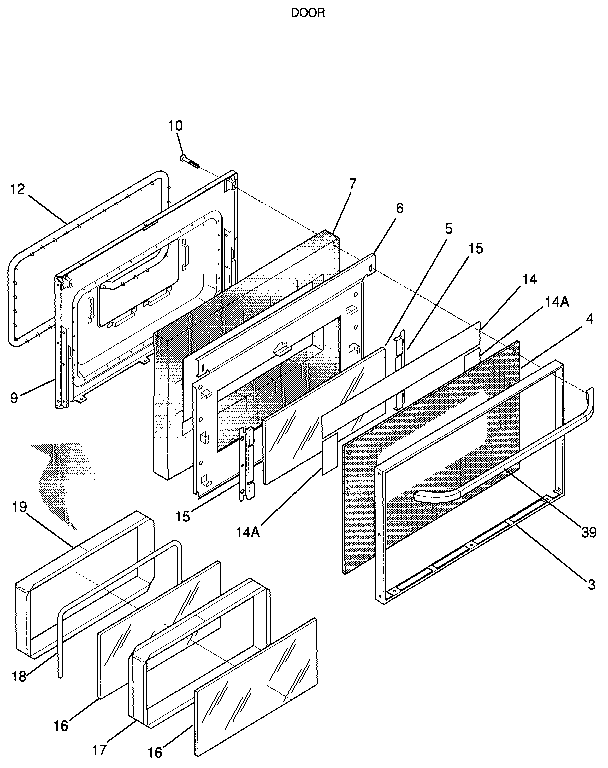

Door Parts diagram
FEF352BADA Electric Range Door Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Mifflinburg, PennsylvaniaBake element won't shut off when temperature is reached. Also, oven lock motor runs continually.Awaiting receipt of timer
Mohnton, PennsylvaniaOven element heats up as soon as stove is plugged in without ever turning oven on. This has occurred since using self-cleaning oven and the oven probe went and overheated. It happens even after new probe installed.Timer inspected, no repairs necessary
Chapmansboro, TennesseeThe relay closes for the bake cycle but does not open at the set temperature.
The bake element stays on all the time during the bake cycle. If cancel is pushed
it will shut off. I checked the temperature probe resistance with an ohm meter and it
meets the specs in the service data sheet. When the bake cycle is put on you can
watch as the digital temperature increases to the set temperature then stops.
However the element continued to heat until manually turned off. I had an oven
thermometer and it went over the highest reading of 600 F		Awaiting receipt of timer
