What is the timer/clock part number for the Amana ART6610WW Electric Range And Oven?

Timer part number 31-315570-07-0 for Amana ART6610WW

The ART6610WW Electric Range And Oven uses timer part number 31-315570-07-0.

Do you have a failed Amana ART6610WW control panel? Click here:

We can repair or replace your faulty Amana ART6610WW timer.

ART6610WW are also sometimes referred to using these Alternative Names/Model numbers

Whirlpool ART6610WW Electric Range And Oven, ART6610WW-P1143433NWW, ART6610WW-P1143470NWW, ART6610WW-P1142674NWW, ART6610WW-P1143417NWW, ART6610WW-P1143425NWW, ART6610WW-P1143461NWW

ART6610WW Schematic and Wiring Diagrams

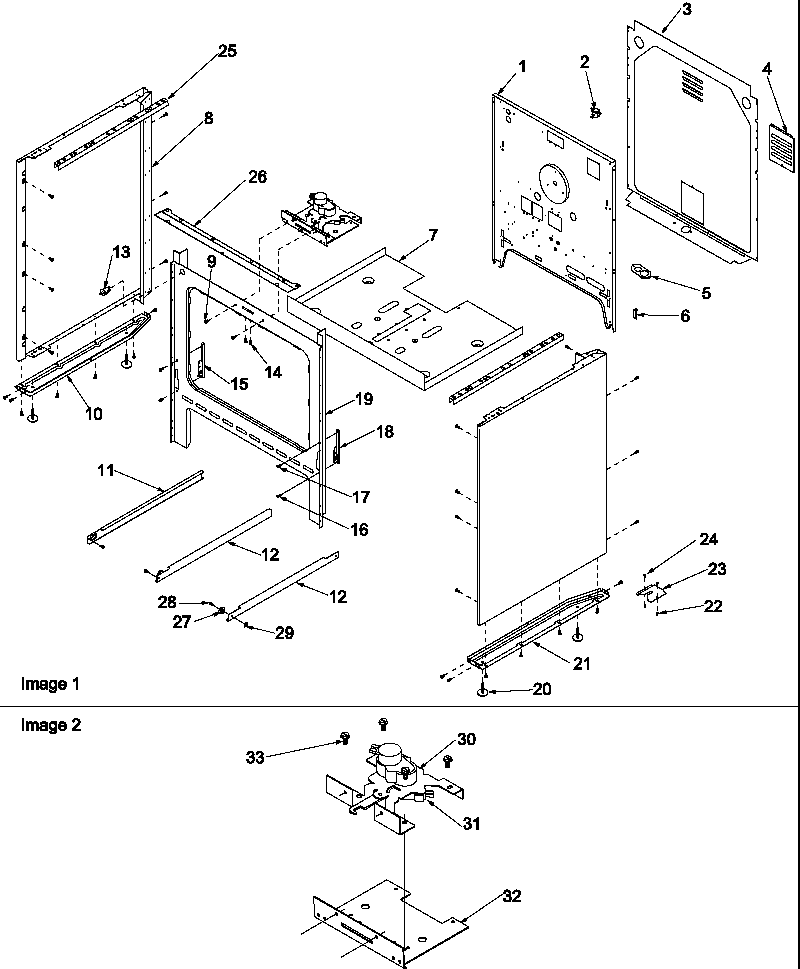

Cabinet Parts diagram

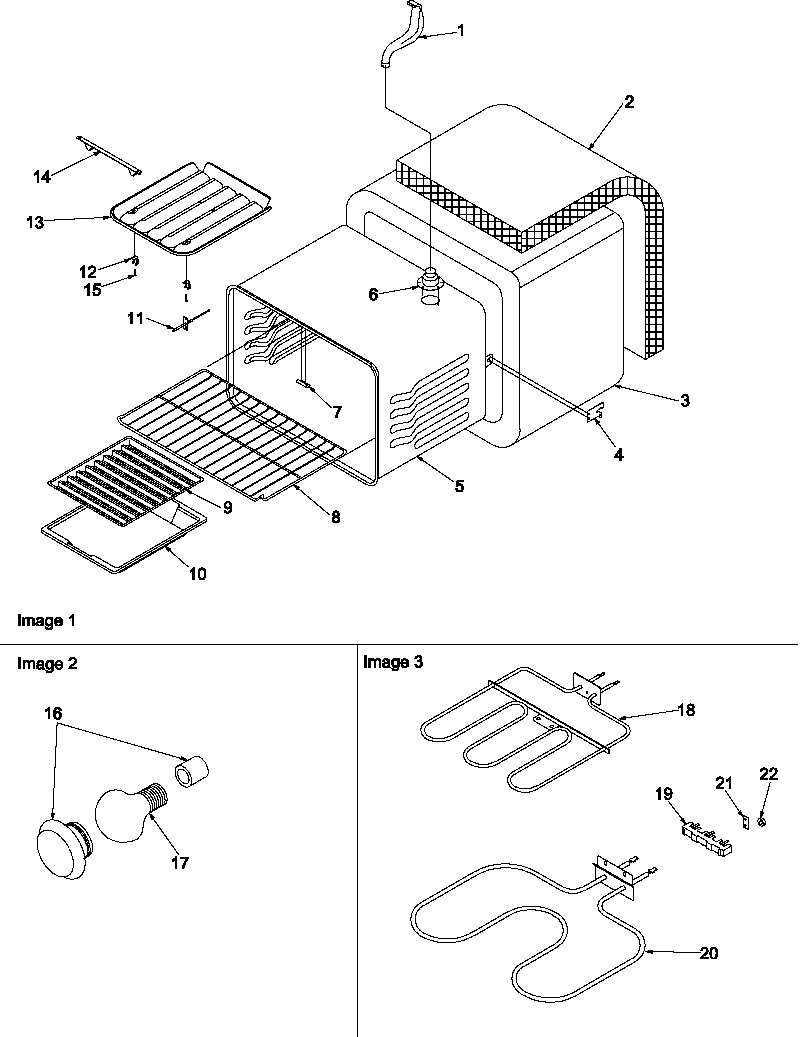

Cavity Parts diagram

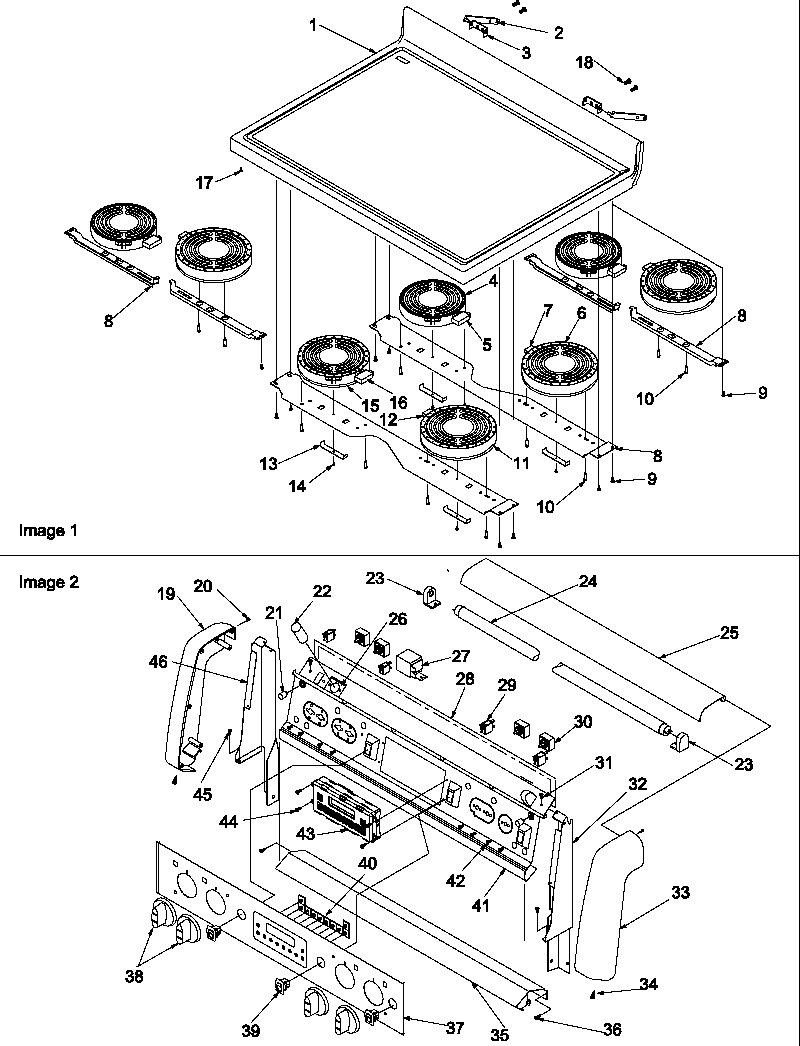

Main top and backguard Parts diagram

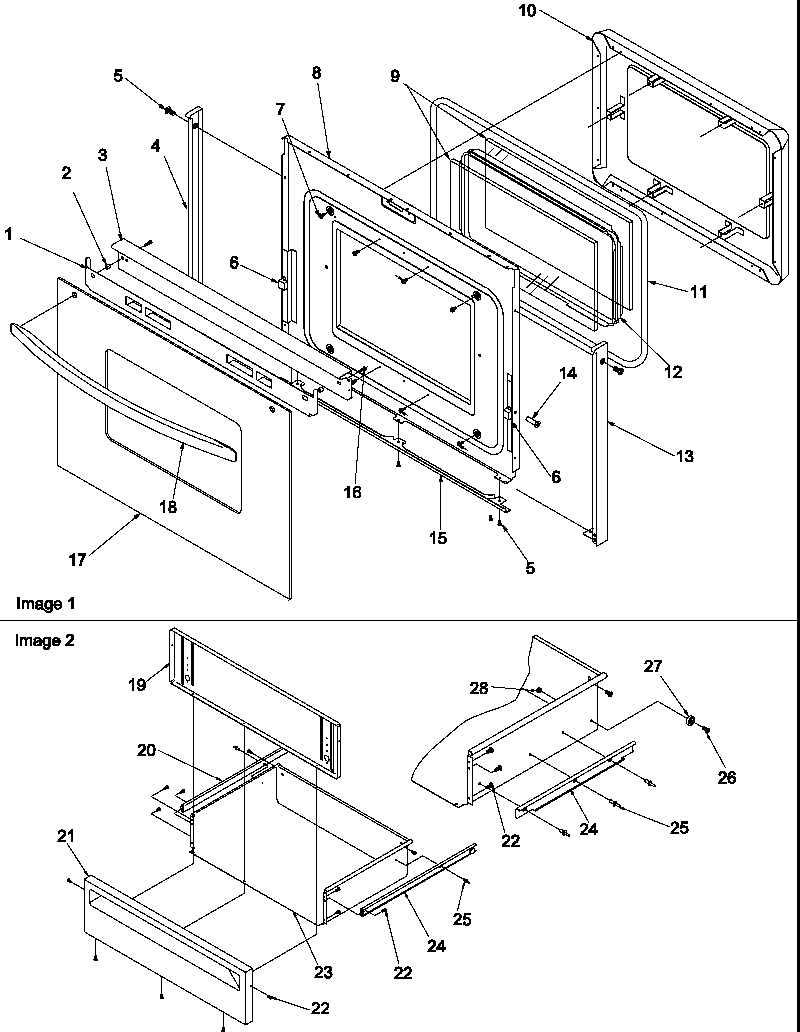

Oven door and storage drawer Parts diagram

Recent Service Requests

City	Problem Description	Resolution
Winter Springs, Florida	no display, oven will not work. Stove top works	Awaiting receipt of timer
Reed City, Michigan	There are no error codes displayed. OVEN WON'T COME UP TO TEMPERATURE!!! Oven temperature sensor(thermocouple) has been replaced without fixing problem. The timer calls for heat - meaning the heater element is switching on and off - but the oven temperature doesn't rise above 220 deg F. Broiler is fine.	Timer inspected, no repairs necessary

Common problems for Amana Electric Range And Oven ART6610WW Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your ART6610WW timer-related problem.

I have an Amana range Modal # XXXXX I had to replace the bake element and when I plugged it back in and turned it on bake or broil it did not heat up and went off after a few seconds. What is the problem?

Replacing right front dual ribbon element in glass top electric oven model ART6610WW. There are five contacts: 1a; 1b; 2a; 2b going to the dual limiter and one (no lable) going to the element (2 prongs, one hard wired to 1a. There are five disconnected wires: purple; red; brown; brown with white checks; white with black checks. Can't find a wiring schematic. What goes to what?
